Short assignment: Chalkboard

In this assignment, you will write a drawing program, a bit like MS Paint or Adobe Photoshop. Ok, maybe without quite all of the features.

Your program should open up a graphics window, and allow the user to use the mouse to draw on a simulated chalkboard. If the mouse button is released, the user should be able to move the mouse pointer around without drawing anything. If the mouse button is pressed down, the board is drawn on using the current chalk color.

The board should be black. The color should initially be white. If the user presses the key ‘r’, then the current chalk color should change to red, and everything drawn after this should be red, until another color key is pressed. Use ‘b’ for blue, ‘g’ for green, and ‘y’ for yellow. You can add other colors if you like, but you do not need to.

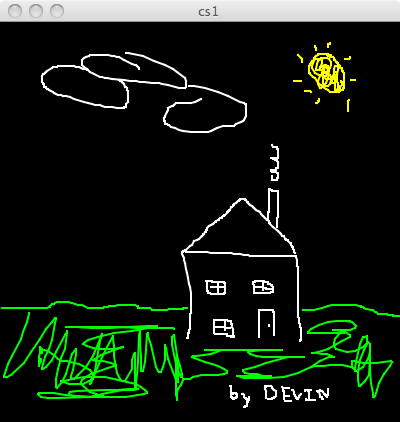

Here is a picture I drew with the program I wrote:


Hints

  1. Start with a simple version of the program. In your first version, don’t worry about color. Once you have everything working, you can add the capability to draw colors.

  2. In your first version, you probably used draw_point() to draw a pixel any time the mouse is pressed down. You may have noticed an annoying problem – if you move the mouse too fast, the points aren’t connected. That’s because the mouse only reports on its location occasionally. If you watch carefully, you’ll see that the mouse pointer does not really move smoothly, but rather in discrete jumps. What’s the solution? I used draw_line instead of draw_point, and drew from the previous mouse location to the current.

  3. I used four global variables old_x, old_y, curr_x and curr_y. old_x and old_y store the end point of most recent line that was drawn in your main draw function. curr_x and curr_y store the current location of the mouse. Everytime your main draw function is called in start_graphics, a line is drawn between the points (old_x, old_y) and (curr_x, curr_y). Then, old_x and old_y are updated to remember the end point of the line drawn. Values of curr_x and curr_y are updated in mouse_move callback function.

  4. I found a stroke width of 2 to be reasonable.

What to turn in

  1. Turn in a screenshot of something you drew with your program, demonstrating at least four different colors, and pixels connected by straight lines (as discussed) in hint 2.

  2. Turn in your .py source code listing.

Special note:

  1. Please do not change the default framerate for this problem.

  2. You must use callback functions to handle mouse operations.
