Armada project

We developed the Armada parallel file system to allow a programmer more flexibility in specifying how data could flow from a set of I/O nodes to a set of computation nodes, in the context of large-scale computational grids. In these grids, network latency is significant, and it is important to pipeline the data flow. Armada allows the programmer to specify the data-transformation operators between the computation nodes and the I/O nodes, and internally optimizes the structure before automatically deploying the operators to intermediate nodes.

Objectives.

Develop an I/O framework that allows data-intensive applications to efficiently access geographically distributed data sets.

Problem Definition.

An exciting trend in high-performance computing is the use of geographically-distributed networks of heterogeneous systems and devices known as "computational grids". Of particular interest is the development of data-intensive grid applications. Data-intensive grid applications require access to large (terabyte-petabyte) remote data sets, and often require significant preprocessing of filtering before the computation can take place. Such applications exist in many areas of scientific computing including seismic processing, climate modeling, particle physics, and others

Technical Approach.

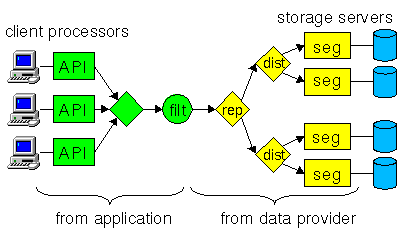

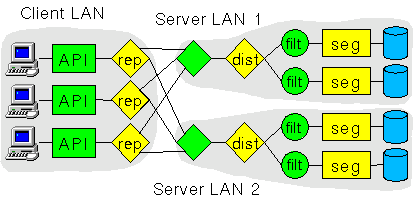

The Armada framework for parallel I/O provides a solution for data-intensive applications in which the application programmer and data-set provider deploy a network of application-specific and data-set-specific functionality across the grid. Using the Armada framework, grid applications access remote data by sending data requests through a graph of distributed application objects. A typical graph consists of two distinct portions: one that describes the layout of the data (as defined by the data provider), and one that describes the interface and processing required by the application. Armada appends the two portions to form a single graph, restructures the resulting graph to distribute computation and data flow, and assigns modules to grid processors so that data-reducing modules execute near the data source and data-increasing modules execute near the data destination. The figures below show the original and restructured graphs for an application accessing a replicated and distributed data set.

A key feature of Armada is the ability to restructure the application graph. Unlike existing database systems that restructure graphs based on well-known relational operators, Armada's restructuring algorithm uses programmer-defined properties to allow restructuring of a wide range of application classes (not just relational databases).

Perhaps the most critical part of the Armada system is the placement algorithm. Modules that make up the graph execute on processors near the client, processors near the data, or intermediate network processors. Our approach is to treat placement as a hierarchical graph-partitioning problem. We first partition the graph into domains in such a way to minimize the data transferred between domains. Next, we partition the modules in each domain to available processors provided by each domain's local resource manager.

Open Problems.

Armada is not a fully-featured I/O system. In particular, it lacks support for data management, security, and fault tolerance, which are necessary in a production grid system. While there are active research groups working in each of these areas, there is still much debate over proper solutions. In the Conclusions and Future Work section of the dissertation (oldfield:thesis), we discuss the issues involved in building support for each of these features in the Armada I/O system. In addition, we present potential improvements to the placement algorithm, and describe how to adapt Armada to work efficiently on tightly-connected clusters of workstations.

People

Talks

Funding and acknowledgements

This research was funded by the US Department of Energy (Sandia National Laboratories) under contract DOE-AV6184.

The views and conclusions contained on this site and in its documents are those of the authors and should not be interpreted as necessarily representing the official position or policies, either expressed or implied, of the sponsor(s). Any mention of specific companies or products does not imply any endorsement by the authors or by the sponsor(s).

Papers tagged 'armada'

Papers are listed in reverse-chronological order; click an entry to pop up the abstract. For full information and pdf, please click Details link. Follow updates with RSS.

2006:

Ron Oldfield and David Kotz. Improving data access for computational grid applications. Cluster Computing. January 2006. [Details]

High-performance computing increasingly occurs on “computational grids” composed of heterogeneous and geographically distributed systems of computers, networks, and storage devices that collectively act as a single “virtual” computer. A key challenge in this environment is to provide efficient access to data distributed across remote data servers. Our parallel I/O framework, called Armada, allows application and data-set providers to flexibly compose graphs of processing modules that describe the distribution, application interfaces, and processing required of the dataset before computation. Although the framework provides a simple programming model for the application programmer and the data-set provider, the resulting graph may contain bottlenecks that prevent efficient data access. In this paper, we present an algorithm used to restructure Armada graphs that distributes computation and data flow to improve performance in the context of a wide-area computational grid.

2003:

Ron Oldfield. Efficient I/O for Computational Grid Applications. PhD thesis, May 2003. Available as Dartmouth Computer Science Technical Report TR2003-459. [Details]

High-performance computing increasingly occurs on “computational grids” composed of heterogeneous and geographically distributed systems of computers, networks, and storage devices that collectively act as a single “virtual” computer. A key challenge in this environment is to provide efficient access to data distributed across remote data servers. This dissertation explores some of the issues associated with I/O for wide-area distributed computing and describes an I/O system, called Armada, with the following features: a framework to allow application and dataset providers to flexibly compose graphs of processing modules that describe the distribution, application interfaces, and processing required of the dataset before or after computation; an algorithm to restructure application graphs to increase parallelism and to improve network performance in a wide-area network; and a hierarchical graph-partitioning scheme that deploys components of the application graph in a way that is both beneficial to the application and sensitive to the administrative policies of the different administrative domains. Experiments show that applications using Armada perform well in both low- and high-bandwidth environments, and that our approach does an exceptional job of hiding the network latency inherent in grid computing.

2002:

Ron Oldfield and David Kotz. Using Emulab network testbed to evaluate the Armada I/O framework for computational grids. Technical Report, September 2002. [Details]

This short report describes our experiences using the Emulab network testbed at the University of Utah to test performance of the Armada framework for parallel I/O on computational grids.

Ron Oldfield and David Kotz. Armada: a parallel I/O framework for computational grids. Future Generation Computing Systems (FGCS). March 2002. [Details]

Ron Oldfield and David Kotz. The Armada framework for parallel I/O on computational grids. Proceedings of the USENIX Conference on File and Storage Technologies (FAST). January 2002. Work-in-progress report. [Details]

2001:

Ron Oldfield and David Kotz. Scientific Applications using Parallel I/O. High Performance Mass Storage and Parallel I/O: Technologies and Applications. September 2001. [Details]

Scientific applications are increasingly being implemented on massively parallel supercomputers. Many of these applications have intense I/O demands, as well as massive computational requirements. This paper is essentially an annotated bibliography of papers and other sources of information about scientific applications using parallel I/O.

Ron Oldfield and David Kotz. Armada: A parallel file system for computational grids. Proceedings of the IEEE/ACM International Symposium on Cluster Computing and the Grid (ccGrid). May 2001. [Details]

High-performance distributed computing appears to be shifting away from tightly-connected supercomputers to computational grids composed of heterogeneous systems of networks, computers, storage devices, and various other devices that collectively act as a single geographically distributed virtual computer. One of the great challenges for this environment is providing efficient parallel data access to remote distributed datasets. In this paper, we discuss some of the issues associated with parallel I/O and computatational grids and describe the design of a flexible parallel file system that allows the application to control the behavior and functionality of virtually all aspects of the file system.

1998:

Ron Oldfield and David Kotz. Applications of Parallel I/O. Technical Report, August 1998. Supplement to PCS-TR96-297. [Details]

1996:

David Kotz. Applications of Parallel I/O. Technical Report, October 1996. Release 1. [Details]
