Lab Assignment 3: Sorting it all out

Computer science is about a lot more than handling data, but computers are still a very useful tool for working with large amounts of data. Scientific experiments in biology, chemistry, physics, and psychology can generate huge numbers of measurements. In economics, business, or politics, data can be generated by everything from stock prices, to poll results, to voting records of congresspeople. In this lab, you'll read data from a file, organize that data using a class, write an algorithm to manipulate the data, and visualize your result.

You saw the selection sort algorithm, insertion sort, and merge sort. One part of this assignment will ask you to implement yet another sorting algorithm: quicksort. Quicksort has a worst-case running time of O(n2) (worse than merge sort), but the worst case for quicksort occurs rarely—rarely enough that on average, it runs in O(nlogn) time. Quicksort has two advantages over merge sort: the constants are better, and quicksort runs "in place": no temporary lists have to be created, and so very little additional memory is required to quicksort.

Now, you might ask why you need to implement quicksort when Python has a sorting method built in and when you've already learned three other sorting algorithms. That's a fair question, but if the professors who taught the Python designers had let them skip sorting, we wouldn't have such a nice built-in sort function in Python. I won't let you skip learning how to sort, either!

In this lab assignment, you will read in a text file in which each line describes a world city, store the information about each city in its own object within a list, sort the list using quicksort, write the results out to a file, and display part of the output file in a visualization on a world map.

Checkpoint: File input and output

For the checkpoint, you just need to read in the file of world city information, store the information about each city into its own City object within a list, and write out each object (converted to a string) to a file. You don't need to sort anything, and you don't need to do the graphics.

Checkpoint step 1: Define a City class

Your first job in the checkpoint is to define a City class in a file named Each City object will need instance variables to store the following information:

You need to write only two methods in the City class. The __init__ method does the usual: it takes six parameters (plus self) and stores each in the appropriate instance variable. The __str__ method returns a string consisting of the city's name, population, latitude, and longitude, separated by commas and with no spaces around the commas. The string returned by your __str__ method should be exactly as specified here, because your section leader will compare your resulting file with one that is I've prepared, and the two files need to be identical in order to give you full credit for the checkpoint.

For example, here's the string that __str__ should return for a particular town in New Hampshire:


Notice that the country code and region do not appear in the string returned by __str__.

Checkpoint step 2: Read in and parse the input file

The input file is in world_cities.txt. Download this file, and drag it into your PyCharm project. This file has 47914 lines (last line will be a blank line). Each line has information about a world city, specifically the six attributes you'll store in the City object, but of course represented textually. These attributes are separated by commas without surrounding spaces. We call such a file a CSV file. (CSV is short for "comma-separated values.") Here's the line of the world_cities.txt file for that town in New Hampshire:


Here, the country code is us, the city name is Hanover, the region is NH, the population is 11222 (Dartmouth students living on campus don't count in Hanover's population), the latitude is 43.7022222, and the longitude is –72.2900000. You already know how to read in a file, line by line. But if you forgot, see the notes from Chapter 9. But how can you process this line? Python makes it pretty easy.

To separate text at a particular delimiter character, call the split method on the string. It returns a list of the strings that, concatenated with the delimiter added in, gives you back the string. This idea is best shown by an example:

s = "a man, a plan, a canal,"
clauses = s.split(",")
print clauses


['a man', ' a plan', ' a canal', '']

Note that every character other than the commas becomes part of one of the strings in the list. Not only do the spaces after the first two commas become part of strings in the list, but we also get an empty string at the end. Why? Because the string s ends with a comma, and so the split method gives back the empty string after the comma.

You can use any character as the delimiter, and the default is a space character. More examples:

s = "Roll out the barrel"
words = s.split()
print words


['Roll', 'out', 'the', 'barrel']


s = "commander--in-chief"
parts = s.split("-")
print parts

(there are two hyphens between commander and in) prints

['commander', '', 'in', 'chief']

Again, note the empty string caused by two delimiters in a row.

To strip away whitespace from the beginning and end of a string, call the strip method on the string:

s = "  The thousand injuries of Fortunato I had borne as best I could, \n"
t = "|" + s.strip() + "|"
print t


|The thousand injuries of Fortunato I had borne as best I could,|

I put the vertical bar characters in so that you could see where the string returned by the call s.strip() begins and ends.

Although each line of world_cities.txt begins with a non-whitespace character, each line ends with a newline, and newline is a whitespace character. Therefore, you will want to call strip on each line of the file and then call split to separate the information by the commas.

Once you have a list of information in a particular line of the file, you can send that information into the City constructor. Since split gives you a list, you can just index into that list for each item. Remember that some of the instance variables in a City object are not strings, and so you will have to convert these strings to the appropriate types.

The City constructor will give you back, as you undoubtedly know, a reference to a City object. You should append that reference to a list that you're building up. When you're done, the list should comprise 47913 references to City objects, one for each line in world_cities.txt.

Checkpoint step 3: Write the output file

Once you have the list of references to City objects and you have the __str__ method of the City class defined, all you need to do now is create a file named cities_out.txt and write one line to it for each City object. The line for each city should contain the string returned by calling str on the corresponding City object. Because the __str__ method inserts commas, cities_out.txt will be a CSV file. You'll need to add the newline for each city. When you're done, your cities_out.txt file should have 47913 lines. The first five and last five lines of cities_out.txt should be

Andorra La Vella,20430,42.5,1.5166667
La Massana,7211,42.55,1.5166667
Les Escaldes,15854,42.5,1.5333333
Victoria Falls,36702,-17.9333333,25.8333333

Because the format of this file is tightly constrained, and because you'll be creating the file from world_cities.txt, your section leader has an automated tool to check that your cities_out.txt file is correct. It should match a file that your section leader has, in every single byte.

For the checkpoint, submit your code and your cities_out.txt file.


Once you have done the checkpoint, you will need to sort the list of City objects according to various criteria. You will use the quicksort algorithm to sort.

Like merge sort, quicksort is recursive. As in merge sort, the problem is to sort a sublist the_list[p : r+1], which consists of the items starting at the_list[p] and going through the_list[r]. (Recall again that in Python's slice notation, the number after the colon is the index of the first item not in the sublist.) Initially, p equals 0 (zero) and r equals len(the_list)-1, but these values will change through the recursive calls.

Important note: In several places in this lab writeup, we use Python's sublist notation, such as the_list[p : r+1]. We use this notation only to indicate the range of indices you should be working with. Do not use this sublist notation in your program. Why not? Because it will make a copy of the sublist of the_list, and if you change values in a sublist you create using sublist notation, the values in the_list itself will not change.

The base case is the same as for merge sort: a sublist with fewer than two items is already sorted.


It doesn't take much insight to see that all the work in quicksort occurs in the partitioning step, so let's see how to do that. You will write a function with the following header:

def partition(the_list, p, r, compare_func):

This function should partition the sublist the_list[p : r+1], and it should return an index q into the list, which is where it places the item chosen as the pivot. As a running example, we'll suppose that the current sublist to be sorted is [2, 8, 7, 1, 3, 5, 6, 4], so that the_list[p] contains 2 and the_list[r] contains 4.

First, we need to select an item as pivot. Let's always select the last item in the sublist, that is, the_list[r]. In our example, we select 4 as the value of pivot. When we're done partitioning, we could have any of several results. Here are three of them:

[3, 2, 1, 4, 7, 8, 6, 5]
[1, 3, 2, 4, 8, 7, 5, 6]
[2, 1, 3, 4, 6, 8, 5, 7]

Several more are possible, but what matters is that 4 is in the position it would be in if the sublist were sorted, all items before 4 are less than or equal to 4, and all items after 4 are greater than 4.

We want to partition the sublist efficiently. (Remember that we're in the part of the course where not only do we want right answers, but we want to use resources—especially time—parsimoniously.) If the sublist contains n items, we might have to move each one, and so O(n) time for partitioning an n-item sublist is the best we can hope for. Indeed, we can achieve O(n) time. This picture gives you an idea of how:

You can also look at this PowerPoint.

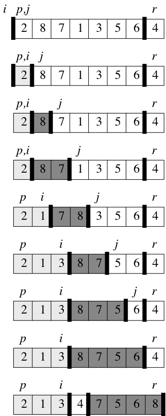

The idea is to loop through the items in the_list[p:r] (which does not include the_list[r], the value of pivot.) Maintain two indices, i and j, into the sublist:

At the start of each loop iteration, for any index k into the sublist:

  1. If p ≤ k ≤ i, then the_list[k]  ≤  pivot.
  2. If i + 1 ≤ k ≤ j − 1, then the_list[k] > pivot.
  3. If j ≤ k ≤ r − 1, then we have yet to compare the_list[k] with pivot, and so we don't yet know which is greater.
  4. If k = r, then the_list[k] equals pivot.

Start with i = p − 1 and j = p. There are no indices between p and i, and there are no indices between i + 1 and j − 1, and so the above conditions must hold: all indices k between j and r − 1 have yet to be compared with pivot. Set pivot = the_list[r] to satisfy the last condition.

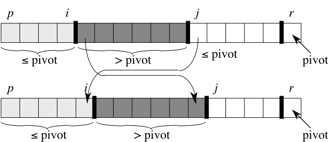

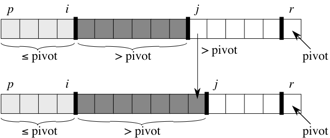

Each iteration of the loop finds one of two possibilities:

The loop should terminate immediately upon j equaling r. To be clear: the last time that the loop body should execute is for j = r − 1. The loop body should not execute when j = r.

Once j equals r, every sublist item before the_list[r] has been compared with pivot and is in the right place. All that remains is to put the pivot, currently in the_list[r] into the right place. Do so by swapping it with the item in the_list[i+1], which is the leftmost item in the partition known to be greater than pivot. (If the greater-than partition happens to be empty, then this swap should just swap the_list[r] with itself, which is fine in this case.)

Your partition function should return to its caller the index where it has placed pivot. Within partition, that's index i + 1.

The function compare_func will be one that you write and pass in. It takes two parameters, say a and b, and it returns True if a compares as less than or equal to b, and it returns False if a compares as greater than b. For example, the call compare_func(3, 5) should return True, the call compare_func(7, 5) should return False, the call compare_func(5, 5), should return True, the call compare_func("Tallahassee", "Tokyo") should return True, and the call compare_func("Boise", "Bismarck") should return False. Your partition function should call compare_func to compare each sublist item with pivot.

You can write your own functions that take a function as a parameter. Here's an example:

def do_it(compare_func, x, y):
    if compare_func(x, y):
        print x, "is less than", y
        print x, "is not less than", y

def compare_ints(a, b):
    return a <= b

def compare_strings(a, b):
    return a.lower() <= b.lower()

do_it(compare_ints, 5, 7)
do_it(compare_strings, "Dartmouth", "Cornell")

The call do_it(compare_ints, 5, 7) passes the function compare_ints into do_it as the first parameter, and so in do_it, compare_func is really compare_ints. The other formal parameters of do_it are x and y, and they get the values 5 and 7, respectively. Therefore, the call compare_func(x, y) is really the call compare_ints(5, 7). This call returns True (the parameter a gets the value 5, and the parameter b gets the value 7), and so the line 5 is less than 7 is printed to the console. Next, the call do_it(compare_strings, "Dartmouth", "Cornell") passes the function compare_strings as the first parameter, and now in do_it, compare_func is really compare_strings. The formal parameter x references the string "Dartmouth", and the formal parameter y references the string "Cornell", so now when we call compare_func(x, y), we're really calling compare_strings("Dartmouth", "Cornell"). The function compare_strings first makes copies of its parameters, but converted to lowercase (that's what the lower method of the string class, does), and then it compares them lexically, using the ASCII character codes. Because "dartmouth" comes after "cornell" lexically, compare_strings returns False, and so the console output is now Dartmouth is not less than Cornell (which is true, because as we all know, Dartmouth is greater than Cornell).

You should implement and test your partition function before writing any other code. Make sure that it works on an arbitrary sublist of the_list, and not just on the sublist where p = 0 and r = len(the_list)-1. You'll have to write the compare_func function as well, and design it so that it works on whatever data type the_list contains. You should certainly test partition on lists containing numbers and on lists containing strings.

I was able to write the body of the partition function in 10 lines of Python code (not counting blank lines and comment lines).

The quicksort function

Once you have the partition function written and tested, you should write a function with the header

def quicksort(the_list, p, r, compare_func):

which sorts the sublist the_list[p : r+1], whose first item is in the_list[p] and whose last item is in the_list[r].

It should work as described above:

The body of my quicksort function takes only 4 lines of Python, not counting comment lines.

The sort function

Unlike the examples from lecture, you'll write a separate function named sort in this lab assignment. It has this header:

def sort(the_list, compare_func):

It simply makes a call to the quicksort function to sort the entire list referenced by the_list.

Place the partition, quicksort, and sort functions in a single file named Include in this file any other functions that your quicksort code calls, but not the comparison functions described below.

What to sort

You will sort information contained in world_cities.txt.

Produce three output files:

  1. cities_alpha.txt contains the list of cities sorted alphabetically.
  2. cities_population.txt contains the list of cities sorted by population, from most to least populous.
  3. cities_latitude.txt contains the list of cities sorted by latitude, from south to north.

Here are the first and last few lines of each of the files, when I ran my program:

  1. For cities_alpha.txt:

    A Coruna,236010,43.366667,-8.383333
    A Dos Cunhados,6594,39.15,-9.3
  2. For cities_population.txt:

    New Delhi,10928270,28.6,77.2
    Sao Paulo,10021437,-23.533333,-46.616667
    El Porvenir,10,9.5652778,-78.9533333
  3. For cities_latitude.txt:

    Punta Arenas,117432,-53.15,-70.9166667
    Rio Gallegos,93234,-51.6333333,-69.2166667

Some things you should note:

Which choice do you think is the easiest to implement? (Hint: It's the third one.)

Write the Python code that reads in the city information, sorts it according to the three criteria, and writes out the results to the three files (cities_alpha.txt, cities_population.txt, and cities_latitude.txt), along with all of your comparison functions, in a single file named

Visualizing the output

CSV files are just fine for computers, but they are not wetware-friendly. You will write a program that visualizes the output of your sorted cities.

Your program will display the image file world.png:

Download this image file, and put it into your project in PyCharm. Your program will overlay the image with marks for the first n cities in an output file. For example, here's what it looks like with small orange squares for the 30 most populous cities:

It's easy to display this image file in a graphics window. After the window has been opened, all you need to do is

img = load_image("world.png")
draw_image(img, 0, 0)

The first parameter to draw_image is the reference to an object for the image returned by load_image. (I don't know what kind of object this is, nor do I care. Yay, abstraction!) The second and third parameters give the x- and y-coordinates of the upper left corner of the image in the graphics window. If you are going to draw the image repeatedly, you may call load_image just once and call draw_image multiple times, as long as you have saved the reference returned by load_image.

I selected the world.png file specially because it uses linear scales for both latitude and longitude, and the (0, 0) spot is exactly in the middle of the image. This image is 720 pixels wide and 360 pixels high.

A hint for you: latitudes increase from south (bottom of the image) to north (top of the image). That's reversed from y pixel coordinates.

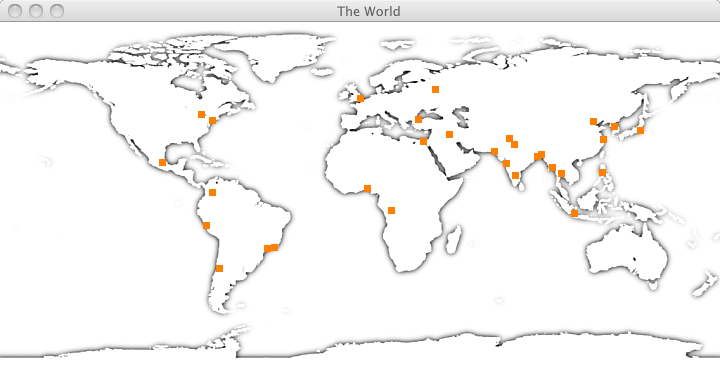

But it's not enough to just show a static image with marks for the first n cities in some order. You need to show them dynamically, in an animation. For example, you could show the first one, then the second, then the third, etc.

You may choose how you animate the cities. Show the 50 most populous cities, in order, starting from the most populous. (I've shown you the first 30.)

Write your visualization code in a file named

Miscellaneous reminder

Remember to close all files that you open once you're done reading from them or writing to them.


Checkpoint: 5 points. 3 of the 5 points are for correct behavior and testing, and the remaining 2 points are for implementation and style.

The remaining 35 points are for the final version.

Correctness: 28 points

Style: 7 points

Extra credit ideas

Any extra credit work should be submitted in separate Python files. Don't add extra credit work into your main solution code. These are just a few ideas; you are more than welcome to make up your own.

What to turn in

For the final version, turn in the following:
